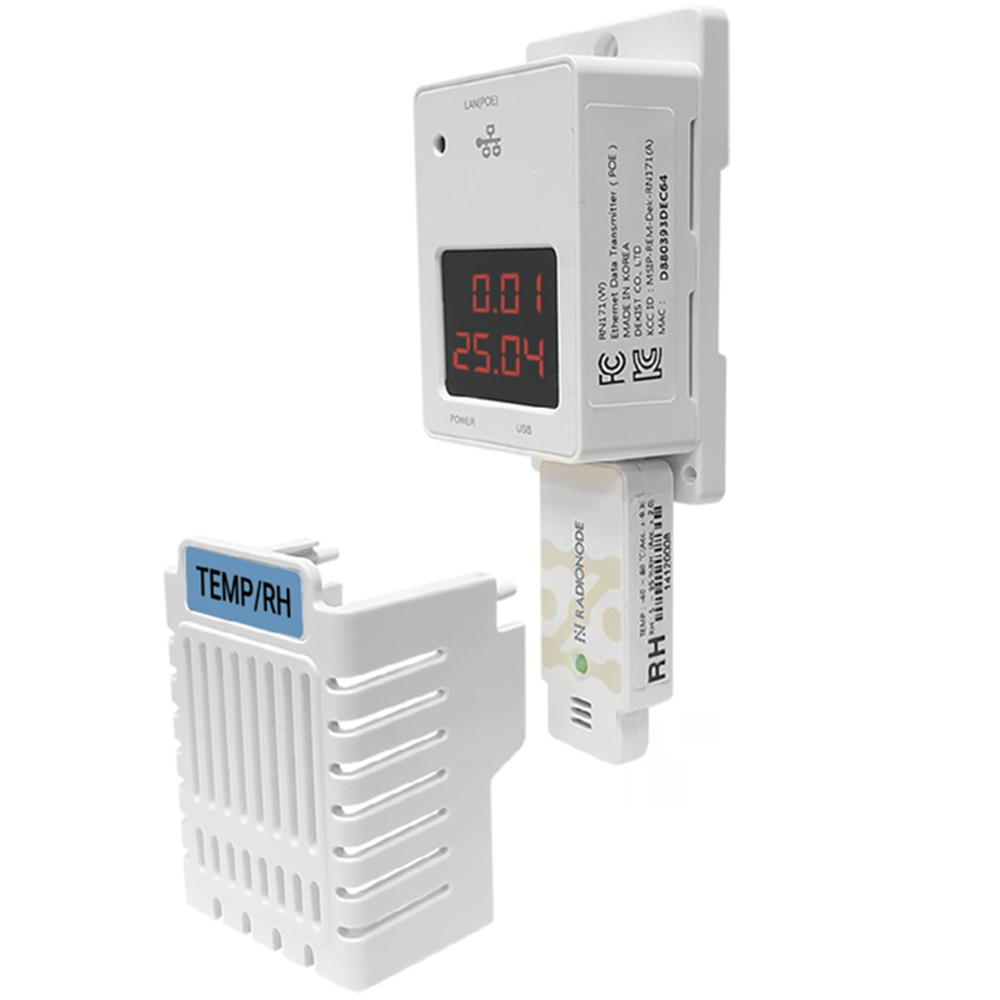

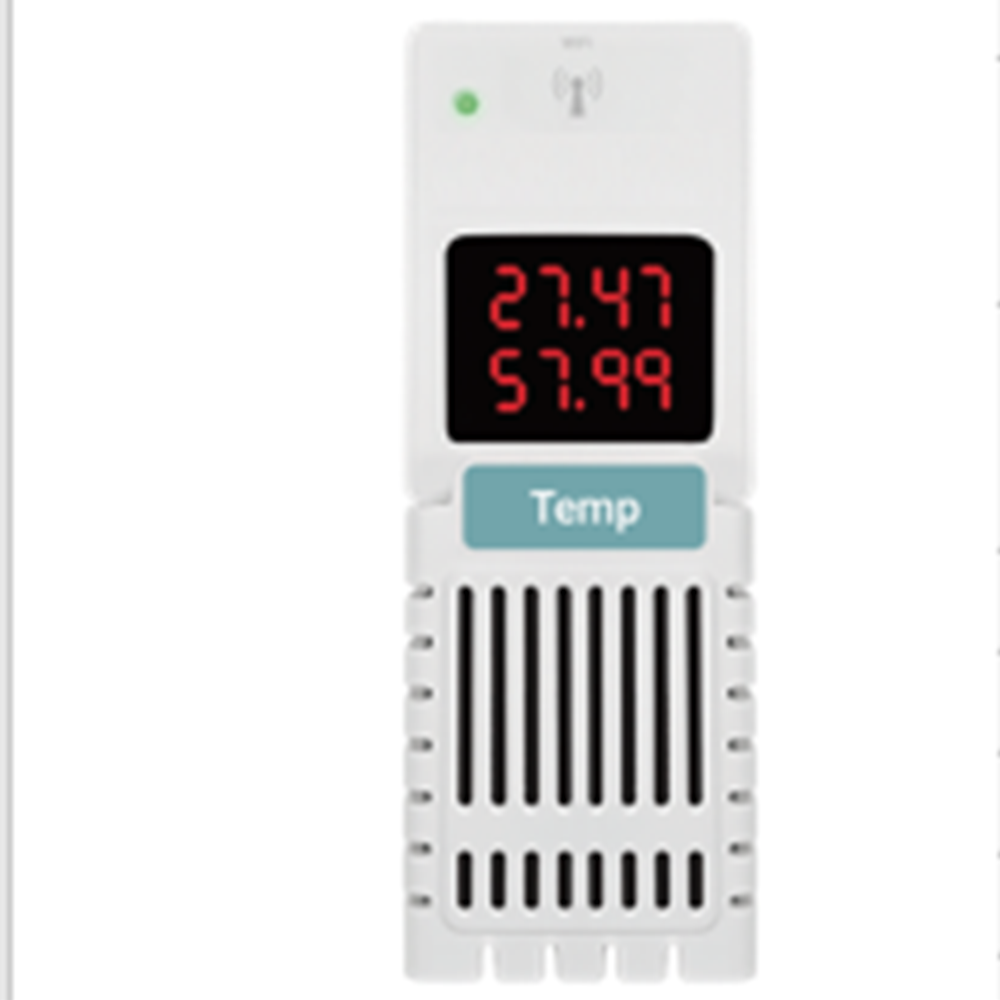

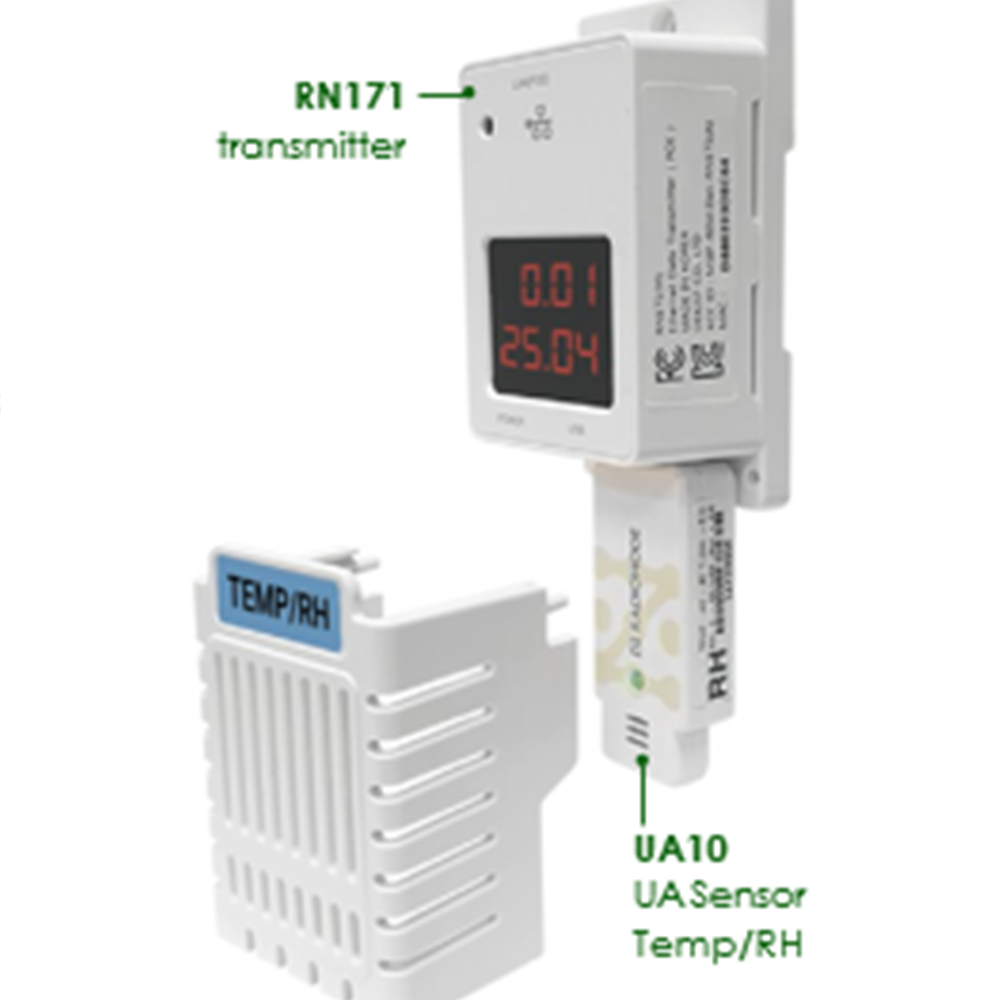

Sensor Data Logger Transmitter

  • Payment
    T/T
  • MOQ
    1 Set
  • Supply Ability
    10,000 Set per One-Time
  • Country of sale
    Asia, Americas, Europe, Middle East, World Wide
  • PRICE
    • EXW

      USD 100.00

      (1 Set)

ITEM SPECIFICS

  • Brand
    Xm
  • origin
    Republic of Korea
  • Size(Capacity)
    90 x 50.4 x 40.5 mm
  • Package Includes
    with sensor protective cover, total length is 141.9mm


PRODUCT DESCRIPTION

[ Features ]

-Support variable UA sensor     -Support PoE, Wifi, LoRa WAN, RS-485     -4 Digital LED display, 2 lines
-Support MODBUS TCP, HTTP, Cloud Storage     -Alerts (Text Massage, Voice Call
-Internal Sound Butter

[ Specifications ]

1)PoE version
    -Ethernet : 100Mbps     -Wired Network Protocol : HTTP,  MODBUS TCP,  TELNET (ATcmd)     -Network port : TCP; 23,  UDP; 50000,  Modbus; 502, Http; 80
     -USB : 2.0,  Sensor port,  Configuration port     -Power supply : DC 6V ot PoE 48V (IEEE802.3af/802.3at)     -Power consumption : 1.9W
     -Size(H W D) : 90 x 50,4 x 40.5mm(with sensor protective cover, total length is 141.9mm)
2)Wi-fi version
     -Wifi : IEEE802. 11 b/g/n,  WPA.WPA2,  2.4GHz     -Wireless network protocol : HTTP,  MODBUS TCP,  TELNET (AT cmd)     -Network port : TCP; 23,  UDP; 50000,  Modbus; 502,  Http; 80
     -USB : 2.0,  Sensor port,  Configuration port     -Power supply : DC 6~24V     -Power consumption : 1.4W
     -Size(H W D) : 90 x 50.4 x 40.5mm (with sensor protective cover, total length is 141.9mm)
3)LoRaWAN version
     -Wireless Network protocol : LoRaWAN® V1.0.3,  OTAA / ABP ClassA,  CN470 / IN865 / RU864 / US915 / AU915 / KR920 / AS923,  TX; 20dbm,  Sensitivity; -137 dbm @ 300 bps
     -USB : 2.0,   Sensor port,  Cofiguration port     -Power supply : DC 6~24V     -Power consumption : 1.9W
     -Size(H W D) ; 90 x 50.4 x 40.5mm (with sensor protective cover, total length is 141.9mm)
4)RS-485 version
     -RS485 : MODBUS RTU     -Wired network protocol : R485 specifications,  Baud Rate; 9600bps(default),  Data bits; 8,  Stop bit; 1,  Parity; None
     -USB : 2.0,  Sensor port,  Configuration port     -Power supply : DC 6~24V     -Power consumption : 1.9W
     -Size(H W D) : 90 x 50.4 x 40.5mm (with sensor protective cover, total length is 141.9mm)
